Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force

Name: Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force
Brand: WenYI Electronics
Price: 1 USD

China Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force wholesale

Brand Name : WenYI Electronics

Model Number : GPI-SSMT-010

Certification : RoHs, SGS, ISO9001

Place of Origin : Made in China

MOQ : 1000pcs / lot

Price : Negotiable

Payment Terms : T/T, L/C, D/P, D/A, Western Union, MoneyGram

Supply Ability : 5000000/ week

Delivery Time : 5-10 working days

Packaging Details : ploybag, then carton box

Dome Type : Round metal dome ,

Touch force : 100g ~280g

Material : Stainlessness steel SUS301

Life time : 1 Million operation life time

Dimple : 5 Dimple

Dome Size : 10mm

Contact Now

Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force

Item description:

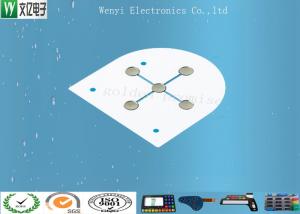

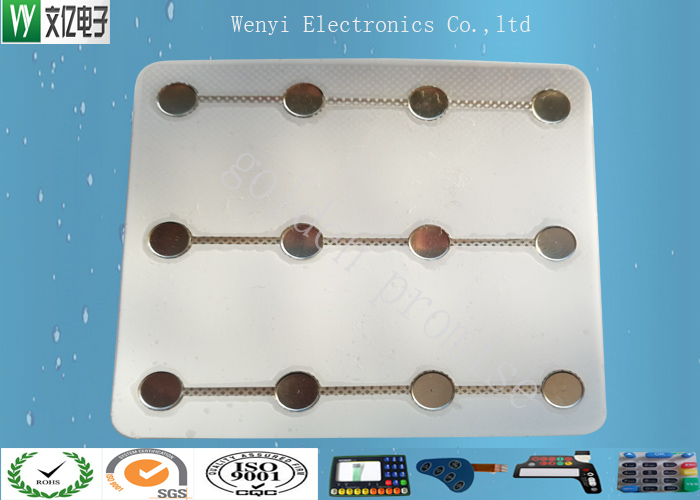

Round Dimpled 8mm SUS301 Stainlessness steel Tactile Metal domes sheet

Dome Size:10 mm

LGF: Light Guide Film

Dome type: Round Metal dome with 5 dimple

Circuit Type: PET (polyster) 0.1mm

Print : Silk screen

Product Characters

Light Guide Film assembly available
Range from 5mm to 12mm metal dome
Withstand millions of cycles
Perfect exterior
Stable in touch force
Automatic machine for Large volume orders.

Our Advantage:

Automatic production to save cost.
Strong R&D capability
Quick delivery
Stable in quality
Whole solution design available

Application

* Romote Controller and PCB assembly
* Telecommunications apparatus
* Household appliances name plate and PCB assembly.
* Various industry control keypad panel
* consumer electronics and 3C items.

Technial specification:

Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range	digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , Metal name plates.
Engineering capability	customer design(OEM), own design(ODM),
Factory capacity	500,000pcs / month
wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree
Quality control level	Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee	Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time	9 to 10 working days as standard
Mass Production lead time	12 to 20 working days, as per order volume. Urgent order available
MOQ	20 pcs / lot, might be different as per specification

		update date: 2018/11/1
