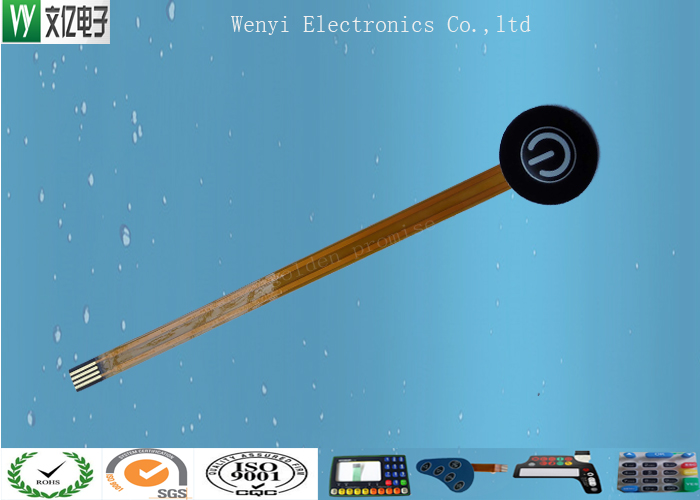

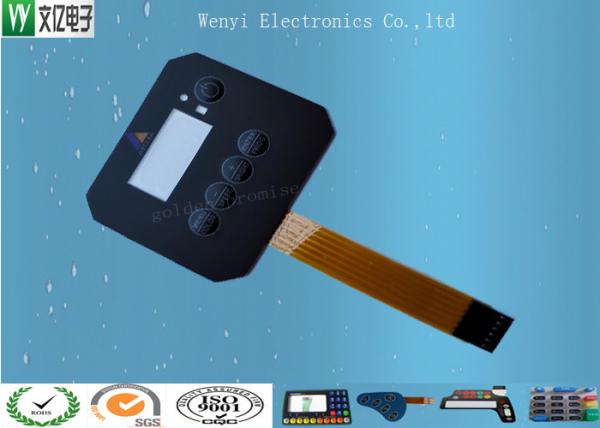

Embossing FPC Membrane Switch 0.18 Mm PET / PC Overlay Female

Product Categories

WenYI Electronics Electronics Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Embossing FPC Membrane Switch 018 Mm PET PC Overlay Female
Brand: WenYI Electronics
Price: 1 USD

Brand Name : WenYI Electronics

Model Number : GPI-FMS-005

Certification : RoHs, SGS, ISO9001:2008

Place of Origin : Made In China

MOQ : 10 pcs/ lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500,000 pcs/ Month

Delivery Time : 10-14 working days

Packaging Details : each in ploybag, then in carton box , as per customer request

Circuit type : FPC circuit

Overlay : PC / PET 0.18 mm overlay

Keys : Round embossing

Connector : Zif connector /Female Connector

LED Brand : Ever Light or as per request

Surface : Matte Finish or as per request

Contact Now

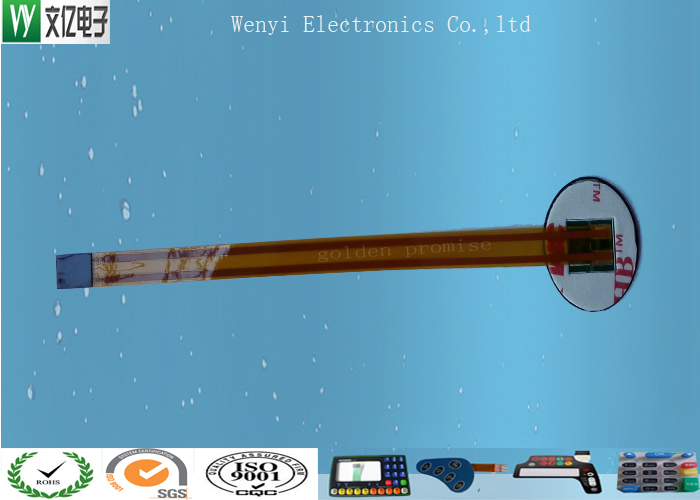

3M VHB backadhesive Autotype 0.18 mm PET / PC Overlay High Reliable Embossing FPC membrane switch

Circuit type: FPC flexible Circuit

Embossing: LED window and Key embossing, Round Embossing

Connctor Brand: ChangJiang or any brand as per request.

Backadhesive: 3M VHB

Window Color: Clear Led window

Application

Technical Specification:

Keyp Content	None tactile	Tactile
Contact Rating:	30 DVC maximum,100mA maximum, 1 watt maximum	30 DVC maximum,100mA maximum, 1 watt maximum
Operating Contact Resistance	Less than 100 OHMS typical	Less than 100 OHMS typical
Contact Bounce	5ms typical	10ms typical
Life Cycles	>2,000,000	>1,000,000
Operating Force	170-700grams	170-700grams
Switch travel	0.1mm-0.4mm	0.6mm-1.0mm
Switch thickness	0.6mm-1.52mm	0.6mm-1.52mm
Storage Tem	-40°C to 65°C	-40°C to 65°C
Operating Tem	-40°C to 65°C	-40°C to 65°C

Embossing FPC Membrane Switch 0.18 Mm PET / PC Overlay Female
