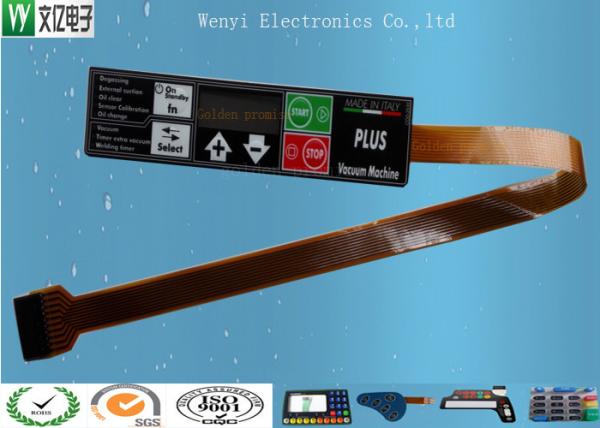

Professional Waterproof Membrane Switch Pad 0.5 OZ FPC Kitchen Industry Use

Name: Professional Waterproof Membrane Switch Pad 05 OZ FPC Kitchen Industry Use
Brand: WenYI Electronics
Price: 1 USD

China Professional Waterproof Membrane Switch Pad 0.5 OZ FPC Kitchen Industry Use wholesale

Brand Name : WenYI Electronics

Model Number : GPI-FMS-003

Certification : RoHs, SGS, ISO9001:2008

Place of Origin : Made In China

MOQ : 10 pcs/ lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500,000 pcs/ Month

Delivery Time : 10-14 working days

Packaging Details : each in ploybag, then in carton box , as per customer request

Circuit type : Rigid and flex combine circuit

Overlay : Matte finish

Keys : Round embossing

Connector : Female connector

LED : 8 SMT LED

LED Brand : Ever Light

Waterproof : IP67,IP65, or IP54

Contact Now

Item Description:

Rigid and Flex Combine Circuit 0.5 OZ FPC Kitchen Industry Use FPC Membrane Switch

Circuit type: Flex and Rigid PCB

Embossing: LED window and Key embossing, Round .

Connctor Brand: Molex or any brand as per request.

Backadhesive: 3M467 or 300LSE

Window Color: Transparent Grey

Waterproof level: IP67, IP54, IP 65

Product Characters

Custom made OEM/ODM
Rasing, and sanding treatment available
Epoxy keys available
color keys screen print are available
Withstand millions of cycles
Perfect exterior

Our Advantage:

Only focus in membrane switch and related items.
Strong R&D capability
Low cost and competitive price
Quick delivery
100% computer test and inspection before shipment
One stop purchase available for customer
Whole solution design available
All Products provide one year quality warranty

Application

*Medical Equipment
* Telecommunications apparatus
* Smart phone systems
* Household appliances
* Security systems
* Various industry control keypad panel
* consumer electronics and 3C items.

Technical Specification:

Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range	carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability	customer design(OEM), own design(ODM),
Factory capacity	500,000pcs / month
wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree
Print type	silkscreen	Digital print	UV print
Dome type	metal dome	ploydome	embossing keys
Embossing type	various kinds of embossing available,embossing height max 1.2mm
Quality control level	Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee	Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time	9 to 10 working days as standard
Mass Production lead time	12 to 20 working days, as per order volume. Urgent order available
MOQ	20 pcs / lot, might be different as per specification

		update date: 2018/11/10
